Pipe Rehabilitation
Sydney
Trenchless CIPP pipe rehabilitation for commercial, industrial and infrastructure assets. Large bore to 1500mm, pressure-rated to 1800kPa, chemical and temperature-resistant liner systems.
No excavation. No extended shutdowns. Full compliance data and warranty documentation available. Operating across NSW since 2016.
Nuflow Certified
Contractor
Rehabilitation capabilities
Standard CIPP relining handles most residential and light commercial jobs. For applications requiring certified pressure ratings, chemical resistance, thermal tolerance or large diameters, we engineer liner systems to match the specific demands of the asset.
Large Bore Rehabilitation
Structural CIPP liners for large diameter pipe assets over any length. Suitable for major trunk sewers, stormwater culverts and bulk water infrastructure.
Temperature-Rated Liners
Liner systems engineered for thermal extremes. Suitable for industrial process pipelines, food manufacturing, steam condensate and chilled water systems.
Chemical-Resistant Lining
Custom resin formulations resistant to acids, alkalis, solvents and industrial effluent. Suitability confirmed against your specific chemical exposure profile.
Pressure Pipe Rehabilitation
Pressure-rated liners for potable and non-potable applications. Independently tested and certified. Suitable for water mains, fire services and industrial pressure lines.
Culvert Rehabilitation
Structural rehabilitation for box culverts, ovoid, egg-shaped and irregular cross-sections. Restores hydraulic capacity and structural integrity without excavation.
Fire Service Rehabilitation
Pressure liners certified for fire suppression systems. Maintains flow performance and system integrity under the demanding conditions of fire service operation.
Trenchless CIPP rehabilitation: how it works
Cured-In-Place Pipe (CIPP) lining is the primary method used in commercial pipeline rehabilitation. A flexible structural liner, saturated with a thermosetting resin, is inserted into the host pipe through an existing access point. It is then positioned, inflated and cured — forming a new, structurally independent pipe inside the original.
The result is a pipe within a pipe: structurally stronger than the original, sealed against infiltration and exfiltration, corrosion-resistant, and rated for the pressures and temperatures your application demands. No excavation. No reinstatement costs. Minimal operational disruption.
For assets where downtime is costly — rail corridors, hospitals, treatment plants, industrial facilities — trenchless rehabilitation is the only practical option.
View residential pipe relining costs

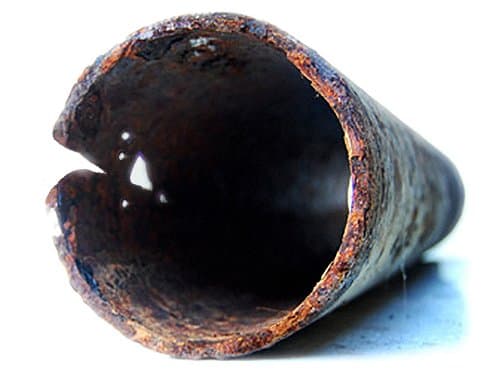

Before
Deteriorated asset

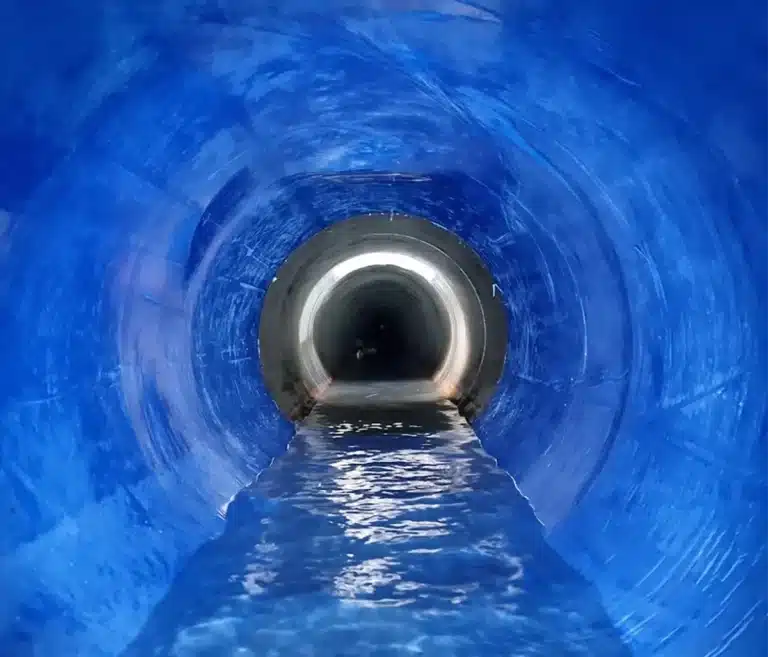

After
Rehabilitated pipe
Sectors and asset environments
Commercial pipe rehabilitation demands are not uniform. We work across environments with specific compliance requirements, operational constraints, and technical specifications.
Rail and Transport
RISI certified- Metro and heavy rail corridors
- Road and transport infrastructure
- Stadia and major venues
- Airports and port facilities
Utilities and Water
Pressure and potable rated- Water treatment and distribution
- Sewerage treatment plants
- Power stations and energy infrastructure
- Gas main and NBN conduit
Industrial and Manufacturing
Chemical and thermal rated- Food and beverage manufacturing
- Breweries and distilleries
- Industrial process facilities
- Chemical and petrochemical plants
Civic and Government
Compliance and data available- Hospitals and healthcare
- Correctional facilities
- Councils and local government
- Defence and government assets
Technical data and compliance support
Asset owners, facility managers and project engineers working in regulated environments need more than a completed installation. We provide full technical documentation packages on request, enabling you to validate liner suitability, satisfy compliance requirements and maintain asset records.
RISI certification is held by our staff for projects on rail corridors and associated infrastructure. All work is backed by a manufacturer’s warranty underwritten by insurance.
Request a technical consultationData available on request
Why commercial operators choose Maida
Since 2016, we have delivered complex trenchless rehabilitation projects across NSW. Here is what separates our commercial offering.
Australian made liners
Nuflow liners are manufactured in Australia, allowing resin and liner specifications to be customised to your exact project requirements.
Custom solutions in days
Non-standard diameters, chemical resistance profiles, or pressure ratings can be engineered and manufactured rapidly, minimising project delays.
Certified for sensitive environments
Nuflow certified contractor with RISI certification for rail projects. Experience across defence, healthcare, government and classified infrastructure.
Schedule-conscious delivery
Commercial operations cannot afford extended shutdowns. We scope, stage and deliver rehabilitation programmes around your operational requirements.
Full compliance support
Complete data packages available on request: test reports, material data sheets, CCTV footage and warranty documentation for asset records.
Manufacturer-backed warranty
The only liner on the market carrying a manufacturer's warranty underwritten by insurance. 50-year written warranty on all rehabilitation work.
“In an industry where trust is everything, Maida is at the top of their game.”
Trusted by leading organisations
Commercial pipe rehabilitation FAQs
What is CIPP pipe rehabilitation?
CIPP (Cured-In-Place Pipe) is a trenchless rehabilitation method where a resin-saturated flexible liner is inserted into a deteriorated pipe, positioned and cured to form a new structural pipe within the original. No excavation is required.
What pipe sizes can you rehabilitate?
Our commercial capability covers standard residential diameters through to large bore applications up to 1500mm in diameter, over any length required.
Can you rehabilitate pressure pipes and potable water mains?
Yes. We install pressure-rated liners certified to withstand up to 1800kPa, suitable for potable and non-potable water applications. Full test data and compliance documentation is available.
Do you work on rail and government projects?
Yes. We hold RISI certification for rail corridor projects and have experience across government, defence, healthcare and transport infrastructure environments.
How quickly can a custom liner be manufactured?
Non-standard diameters and resin formulations can typically be engineered and manufactured within days. We work with your programme and access windows to minimise operational disruption.
What documentation do you provide on completion?
We provide CCTV inspection footage, material data sheets, test reports, warranty documentation and any project-specific compliance data required for your asset records.
Related services
Sewer Pipe Relining
Residential and light commercial sewer relining. 50-year warranty.
Pipe Relining Costs
Pricing guide and interactive calculator for standard relining jobs.
Get a Commercial Quote
Speak with our team about your project scope, compliance needs and timeline.
Ready to discuss your rehabilitation project?
Bring us the asset. We will assess it, recommend the right liner system, provide full compliance data and give you a fixed price before any work begins.
